Entrelec ATEX Terminal Blocks




ATEX Terminal Blocks

ATEX is an acronym for ATmosphere EXplosive. ABB Entrelec manufactures many of their standard terminal blocks under the ATEX directives. These terminal blocks undergo rigorous testing to comply with the ATEX 95 European directive 94/9/EC for use in the mining and surface industries that may experience potentially explosive conditions. Under this directive, the ATEX terminal block is categorized as a "Component".
  • ● Screw Clamp, Spring Clamp and IDC (ADOŽ System)
               Connection Technologies
  • ● Intrinsic Security EN50020
  • ● Increased Security EN50019
  • ● Specific Range for Security and Tracking of ATEX Products
  • ● Protection Types EExi and EExe
  • Certificate of Conformity Included in Every Shipment (CE
                Certification upon request)
  • ● ATEX Product Marking (see chart below)
  • ● Unmistakable ATEX Part Numbering and Batches
  • ● Feed through, Ground and Neutral Functions

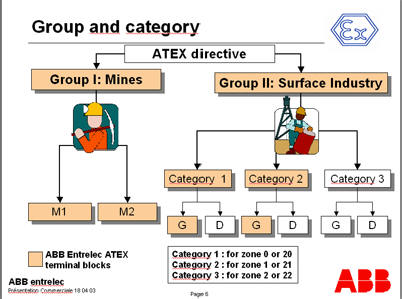

ABB ATEX terminal blocks range is certified in the following group and categories:
